Cast Steel Tactile and Radial Plates

Proven and trusted throughout Ontario, GORA cast steel Tactile Walking Surface Indicator (TWSI) plates are the right choice for your project. Engineered for the harsh Canadian climate, GORA Tactile Plates are now supplies with a new and drastically improved commercial-grade powder coat finish to ensure years of corrosion protection.

GORA 610mmx610mm (24x24”) plate are complimented with a full line up of radius plates with standard sizes from R10’ to R35’. Fully compliant with Canadian Accessibility Codes, AODA requirements, ISO standards and Ontario Building Code, GORA Cast in Place Tactile Plates are available in (4) standard colours.

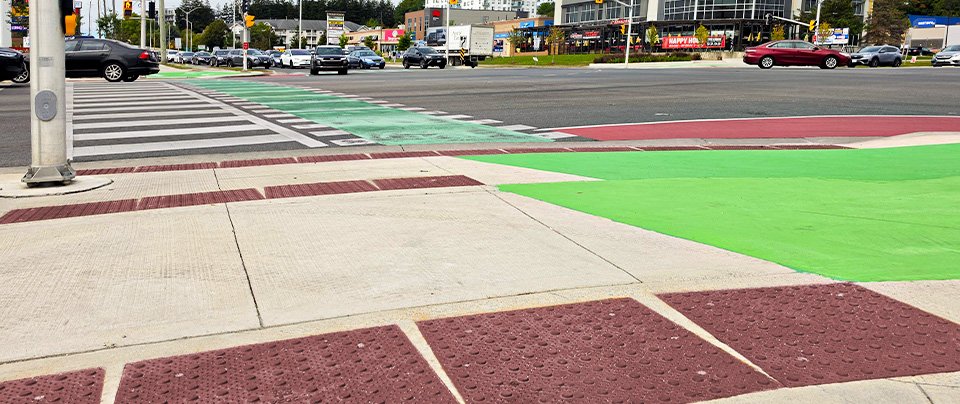

Pedestrian crosswalk at a traffic intersection with GORA brick red steel tactile and radial plates leading up to the crossing with both green bicycle lanes and red bus transit lanes.

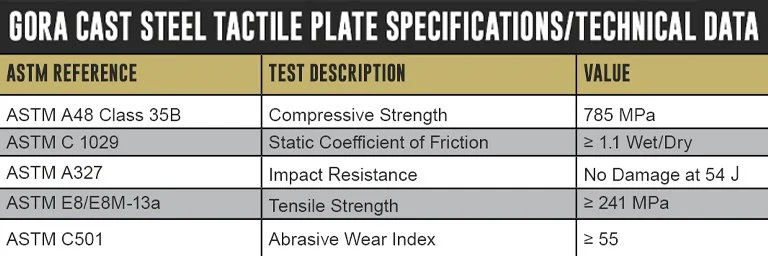

Table of steel tactile plate specifications including ASTM references, test descriptions such as compressive strength, friction coefficient, impact resistance, tensile strength, and abrasive wear index, with corresponding values.

Conforms to:

ASTM A48 – 35B
OPSD 310.039 (Ontario)
OPSS.MUNCI 351 (Ontario)

Professional Associations:

GORA Construction Products is a proud member of:

Logo for The Road Authority featuring a stylized road with a yellow dividing line

Cast Steel Tactile Plates

Available In All Standard and Custom Colours

Product Name:
24×24” (610×610mm) - Uncoated

Product Code:
2424-UN

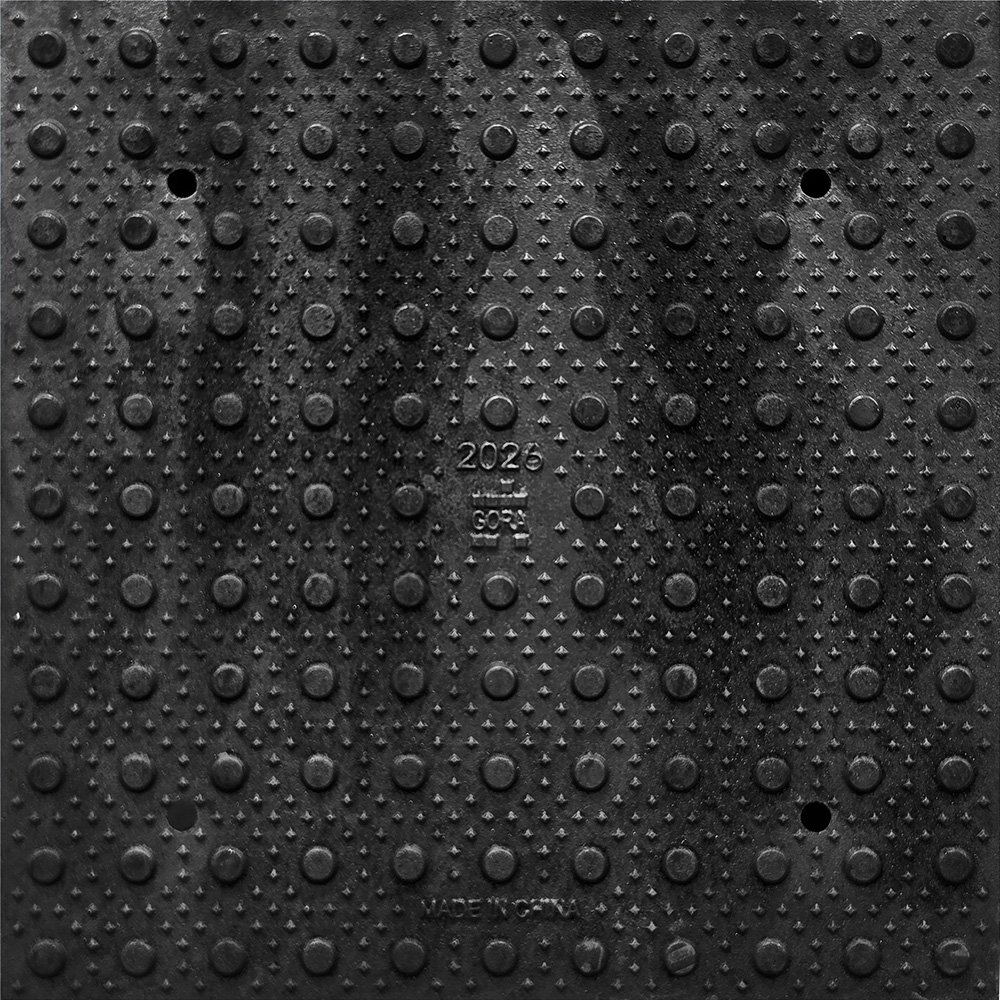

Product close-up of the GORA 24x24" (610x610mm) uncoated steel tactile plate.
Product close-up of the GORA 24x24" (610x610mm) uncoated steel tactile plate.

Product Name:
24×24” (610×610mm) - Dark Grey

Product Code:
2424-DG

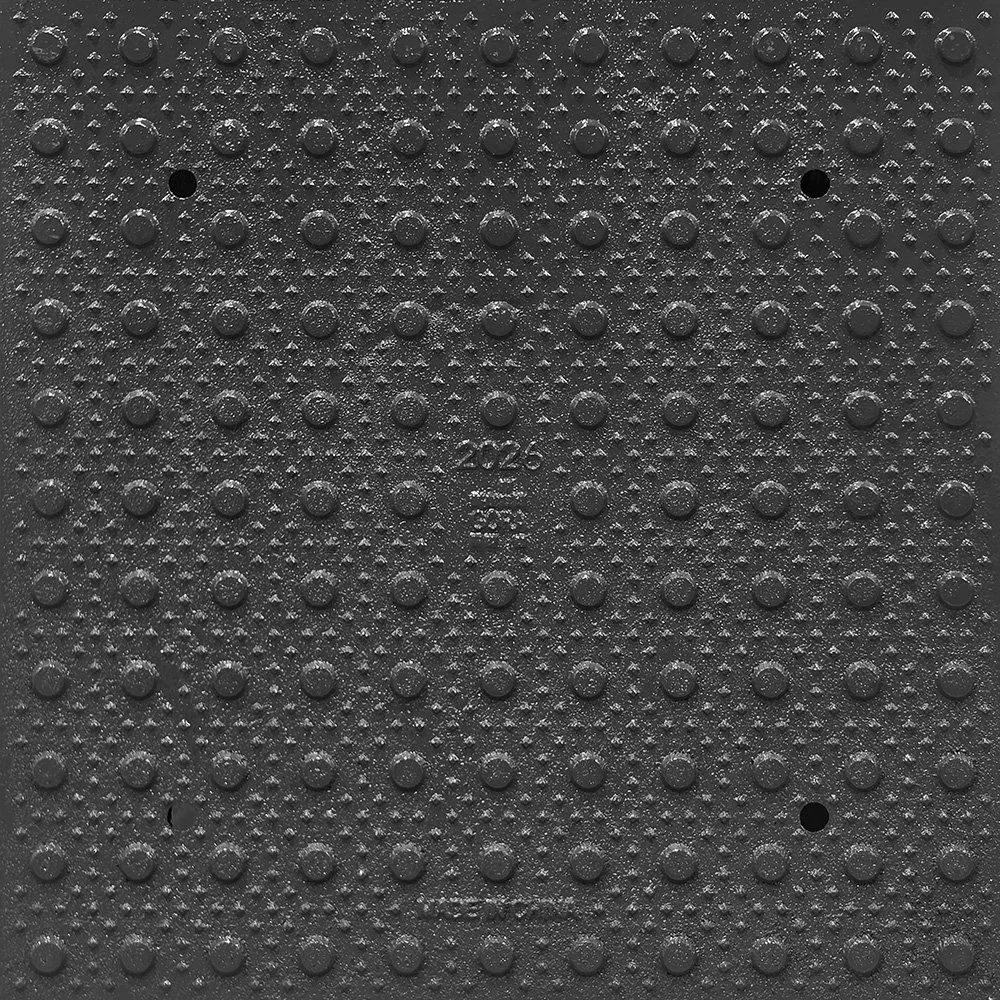

Product close-up of the GORA 24x24" (610x610mm) dark grey steel tactile plate.
Product close-up of the GORA 24x24" (610x610mm) dark grey steel tactile plate.

Product Name:
24×24” (610×610mm) - Onyx Black

Product Code:
2424-BK

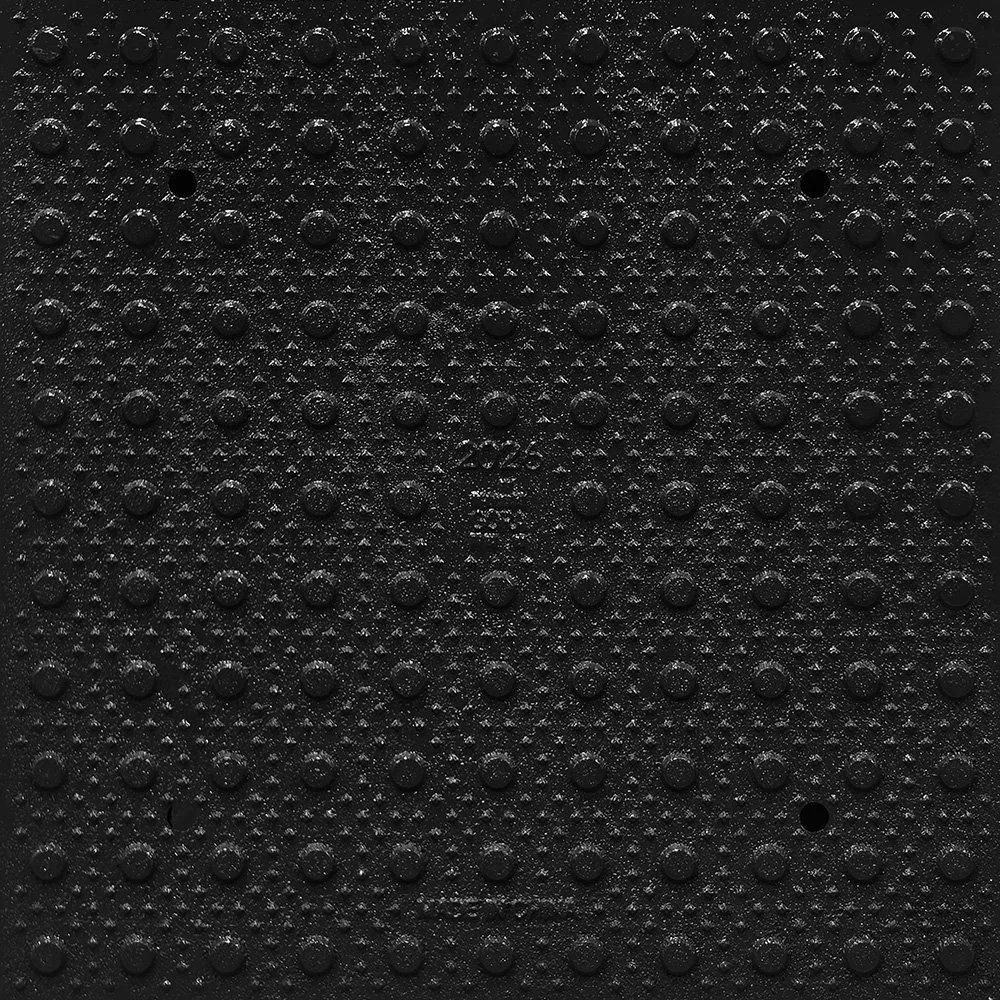

Product close-up of the GORA 24x24" (610x610mm) onyx black steel tactile plate.
Product close-up of the GORA 24x24" (610x610mm) onyx black steel tactile plate.

Product Name:
24×24” (610×610mm) - Safety Yellow

Product Code:
2424-YW

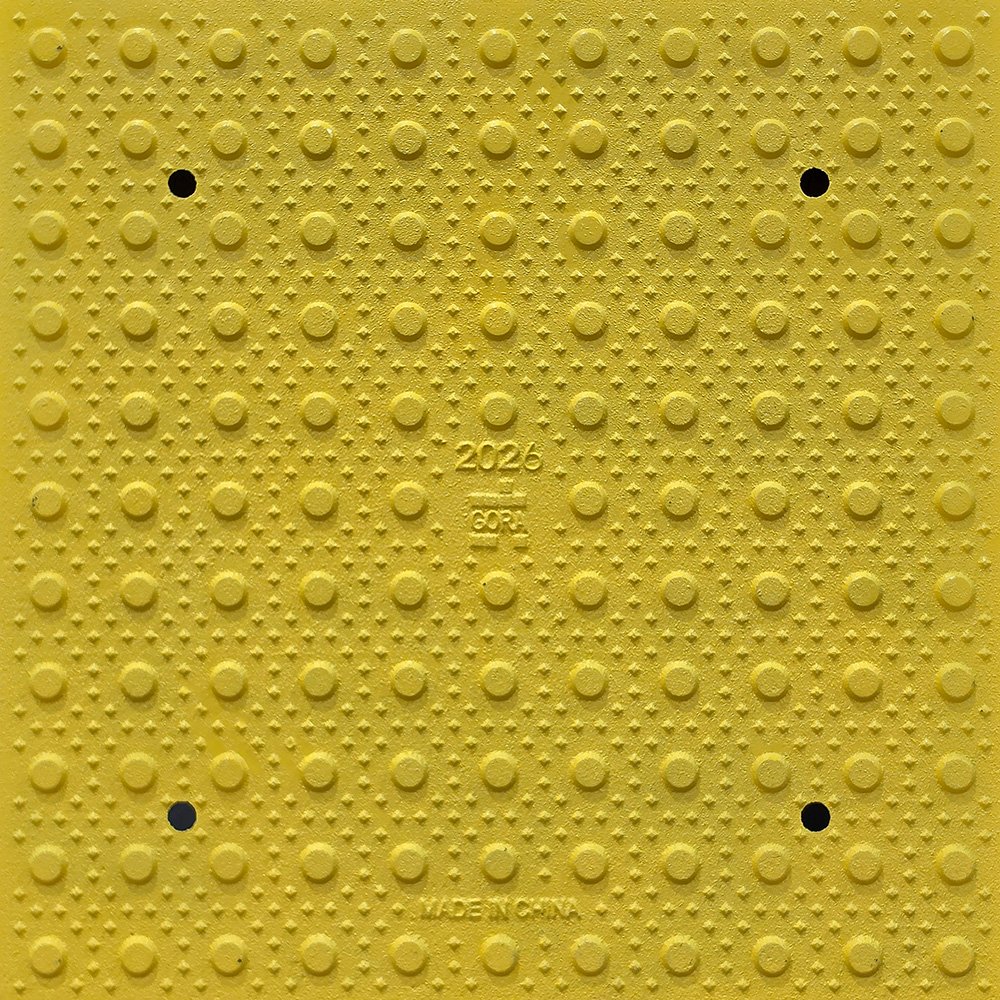

Product close-up of the GORA 24x24" (610x610mm) safety yellow steel tactile plate.
Product close-up of the GORA 24x24" (610x610mm) safety yellow steel tactile plate.

Product Name:
24×24” (610×610mm) - Brick Red

Product Code:
2424-RD

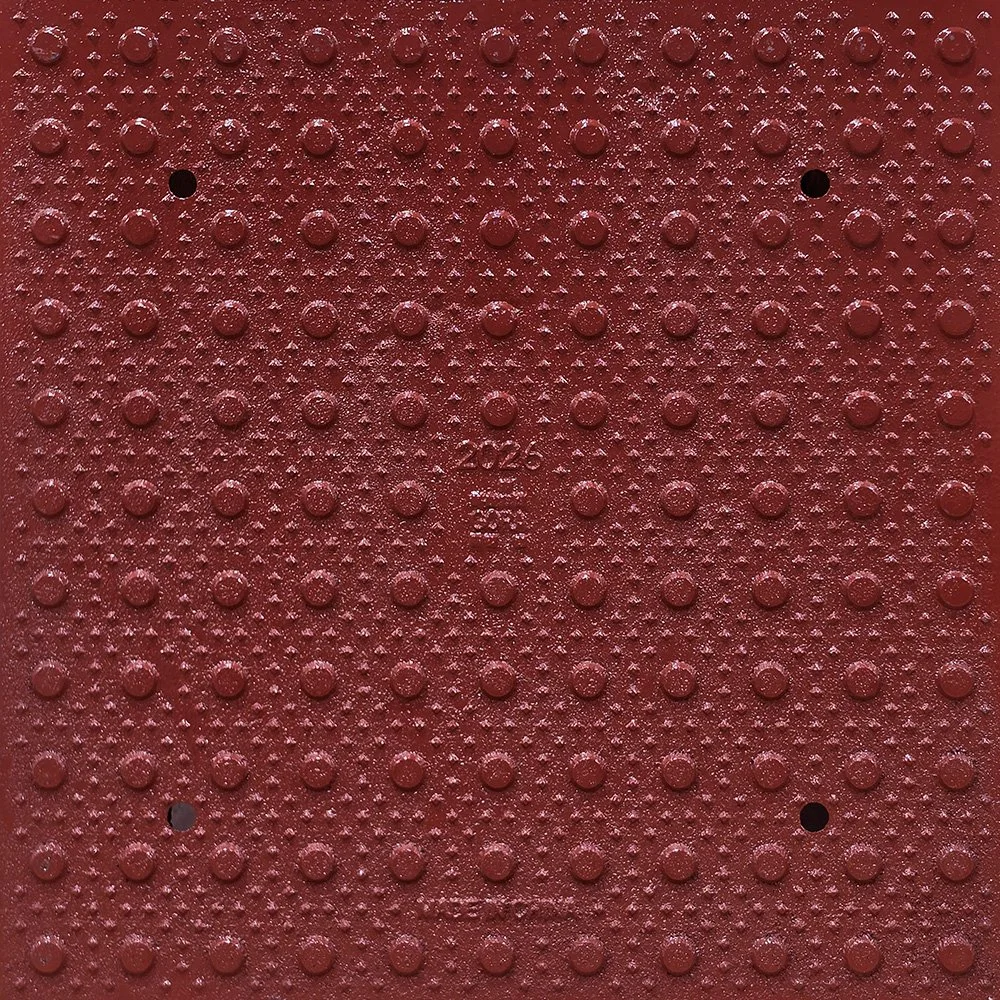

Product close-up of the GORA 24x24" (610x610mm) brick red steel tactile plate.
Product close-up of the GORA 24x24" (610x610mm) brick red steel tactile plate.

Cast Steel Radial Plates

Available In All Standard and Custom Colours

Product Name:
R10’ Radial Plate (3,048mm)

Product Code:
R10-24-XX

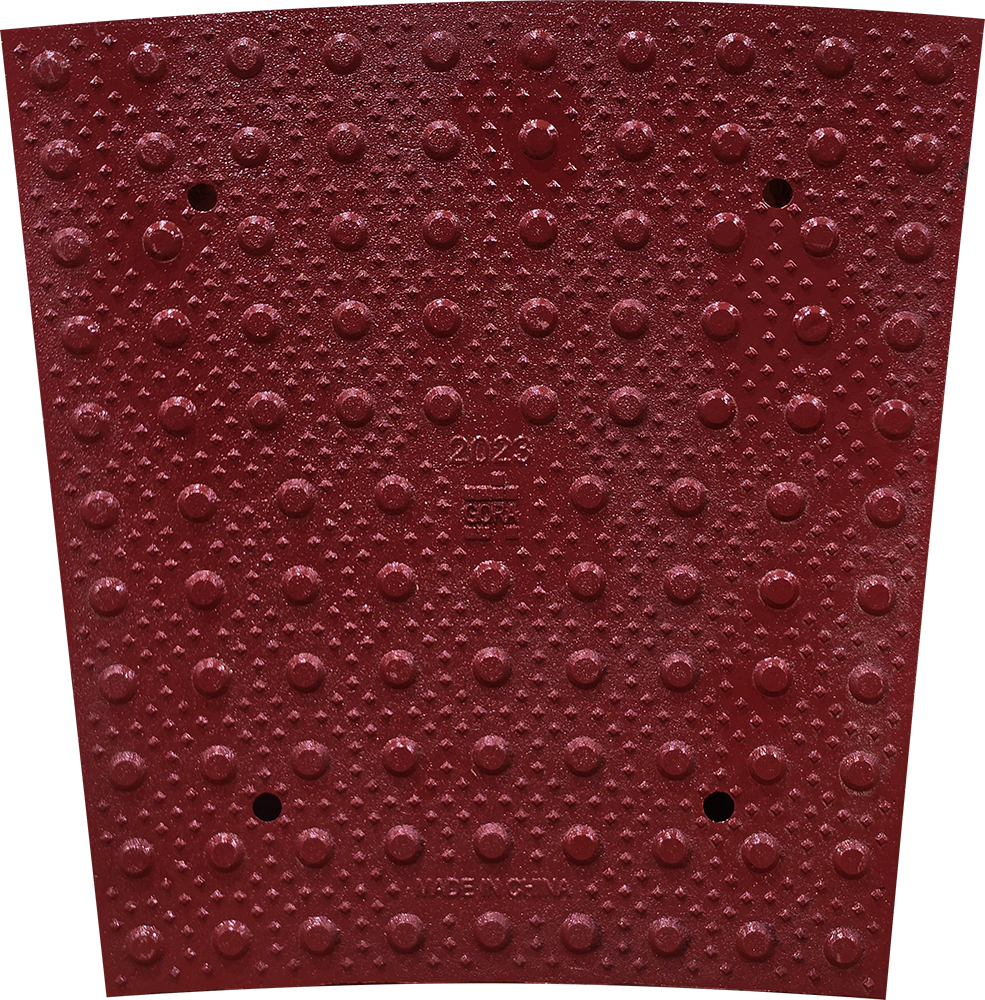

Product close-up of the GORA R10' (3,048mm) brick red steel radial plate.
Product close-up of the GORA R10' (3,048mm) brick red steel radial plate.

Product Name:
R15’ Radial Plate (4,572mm)

Product Code:
R15-24-XX

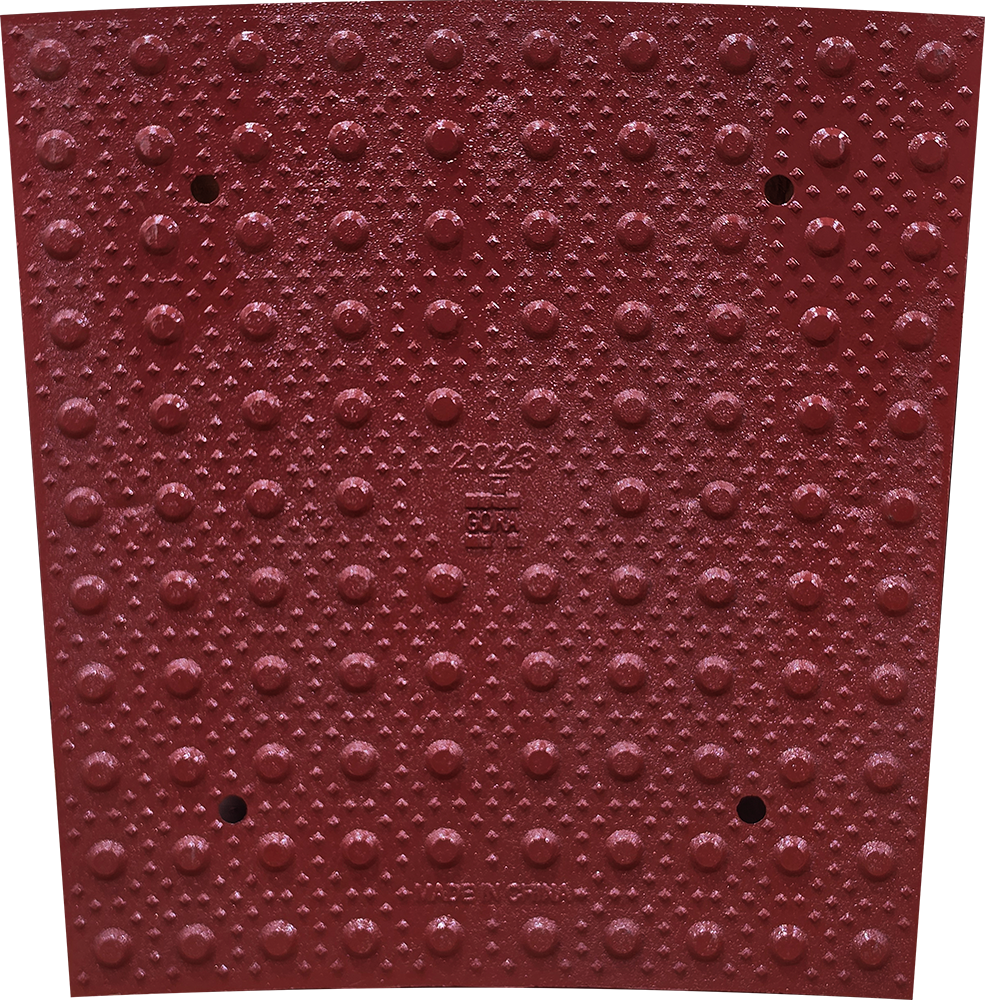

Product close-up of the GORA R15' (4,572mm) brick red steel radial plate.
Product close-up of the GORA R15' (4,572mm) brick red steel radial plate.

Product Name:
R17.5’ Radial Plate (5,334mm)

Product Code:
R17.5-24-XX

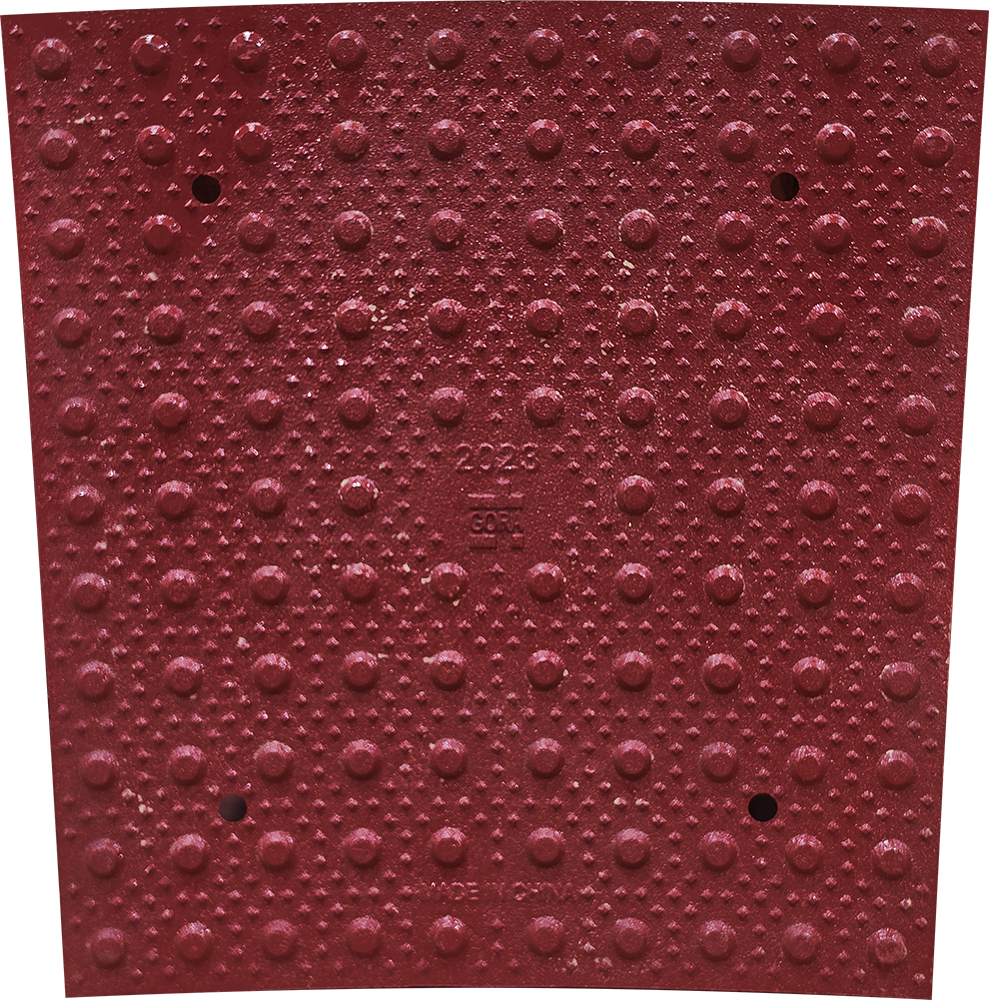

Product close-up of the GORA R17.5' (5,334mm) brick red steel radial plate.
Product close-up of the GORA R17.5' (5,334mm) brick red steel radial plate.

Product Name:
R20’ Radial Plate (6,096mm)

Product Code:
R20-24-XX

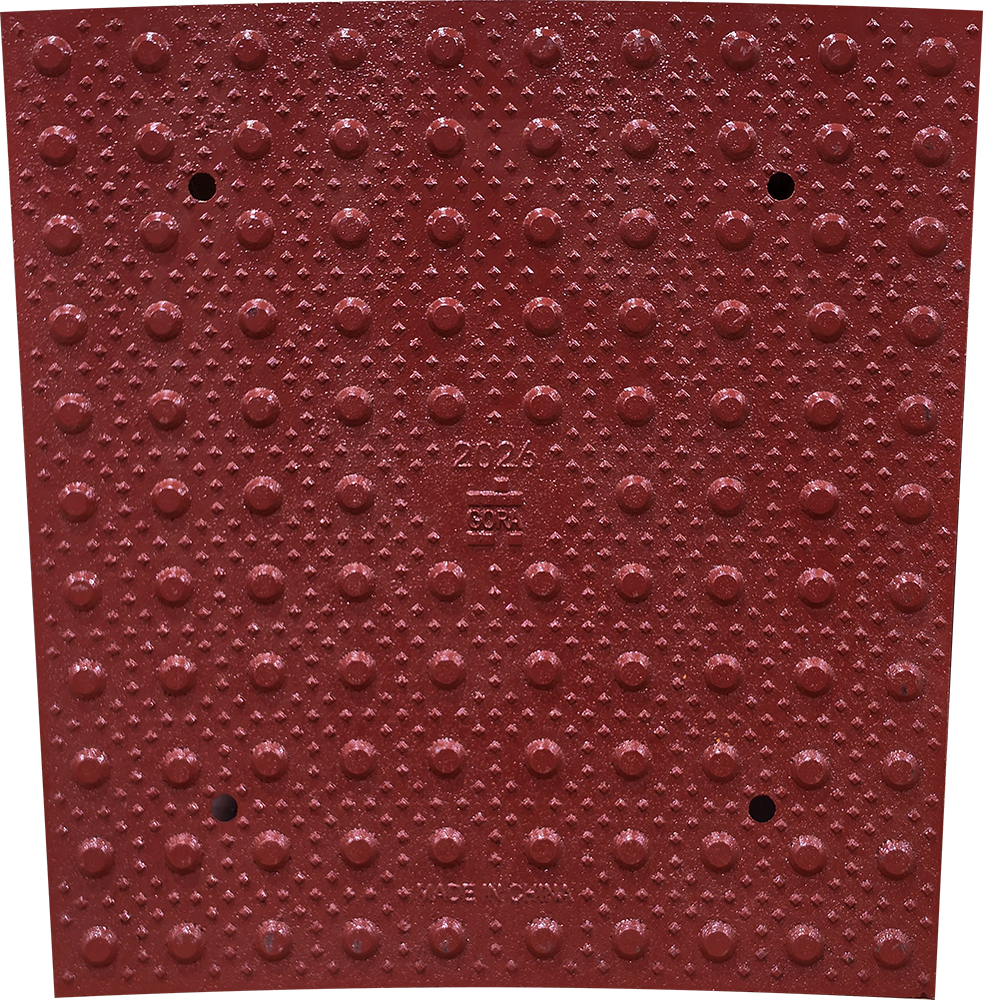

Product close-up of the GORA R20' (6,096mm) brick red steel radial plate.
Product close-up of the GORA R20' (6,096mm) brick red steel radial plate.

Product Name:
R25’ Radial Plate (7,620mm)

Product Code:
R25-24-XX

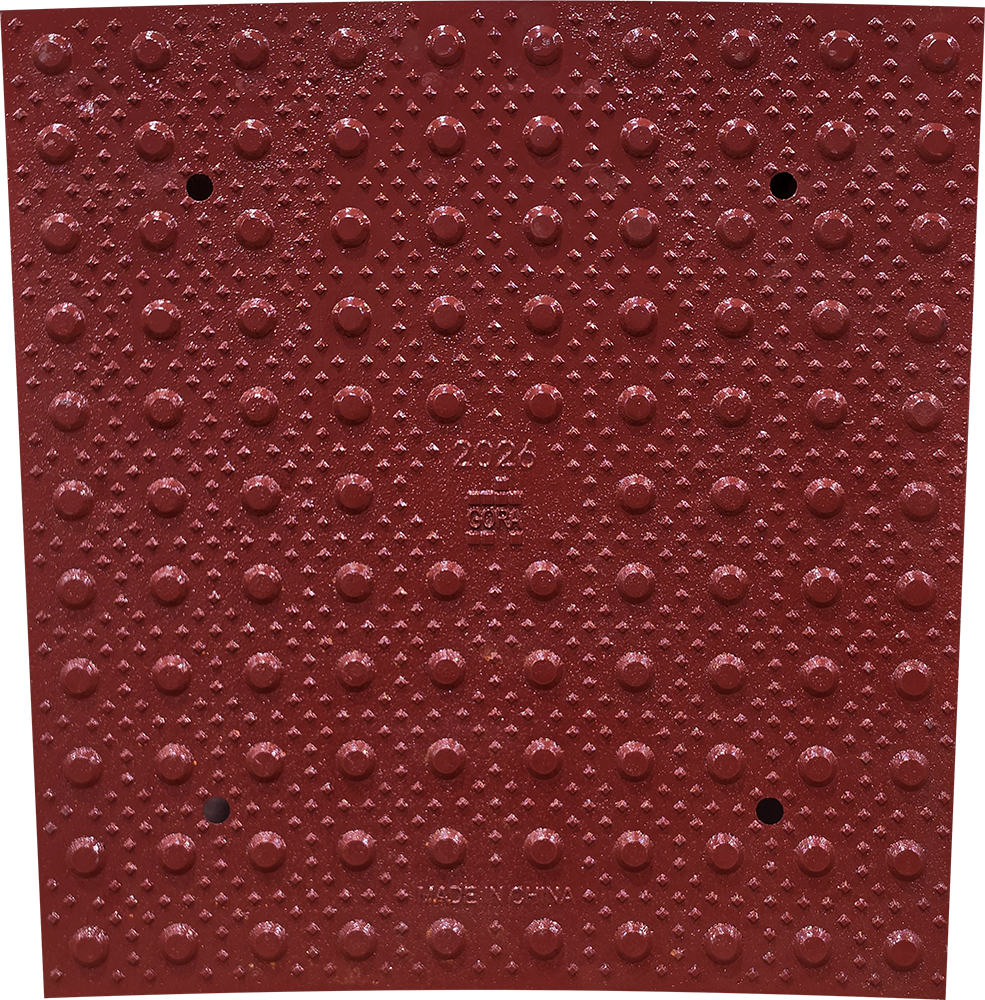

Product close-up of the GORA R25' (7,620mm) brick red steel radial plate.
Product close-up of the GORA R25' (7,620mm) brick red steel radial plate.

Product Name:
R30’ Radial Plate (9,144mm)

Product Code:
R30-24-XX

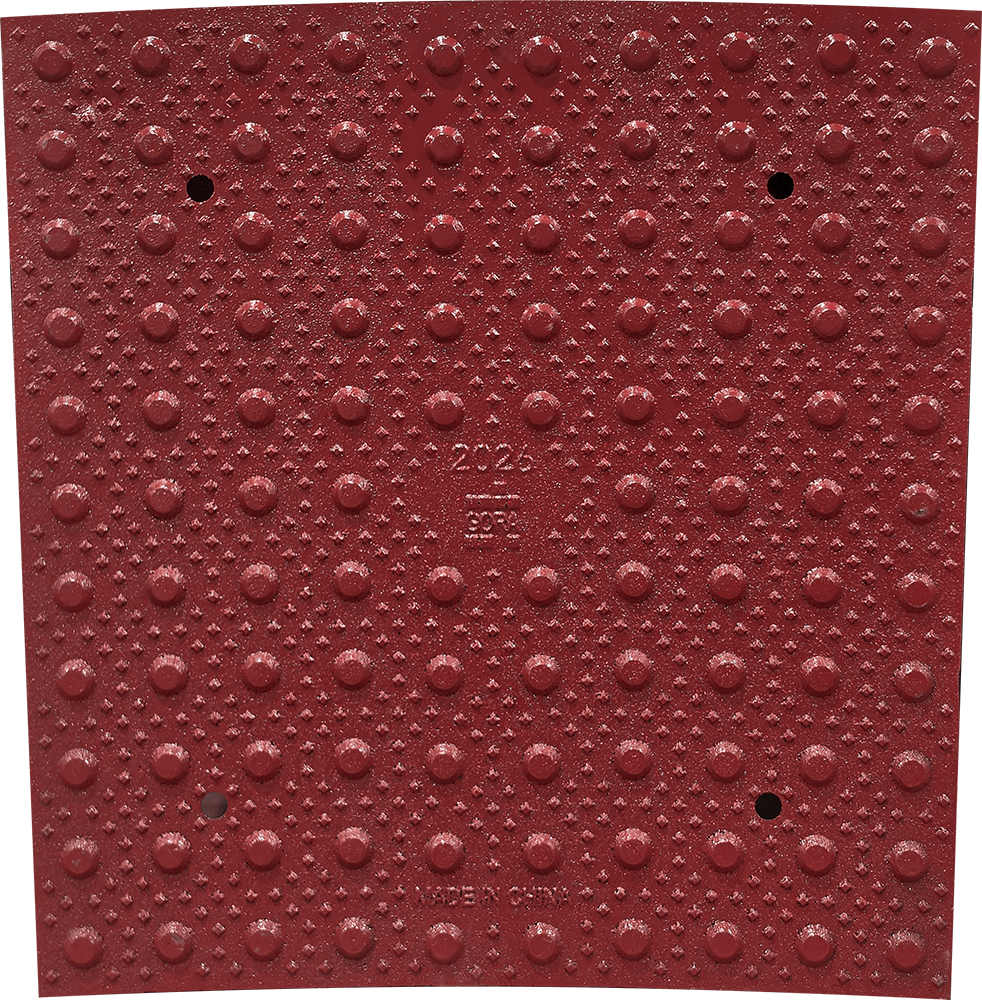

Product close-up of the GORA R30' (9,144mm) brick red steel radial plate.
Product close-up of the GORA R30' (9,144mm) brick red steel radial plate.

Product Name:
R35’ Radial Plate (10,668mm)

Product Code:
R35-24-XX

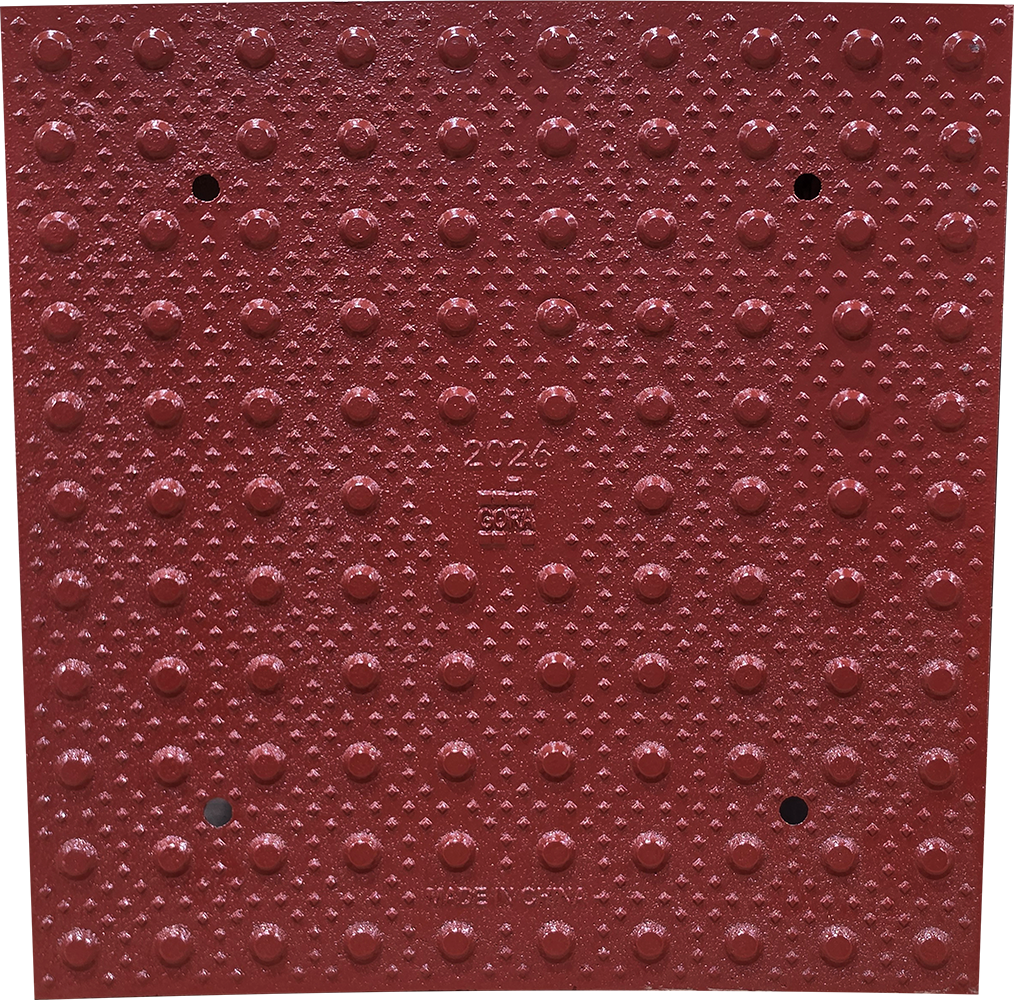

Product close-up of the GORA R35' (10,668mm) brick red steel radial plate.
Product close-up of the GORA R35' (10,668mm) brick red steel radial plate.

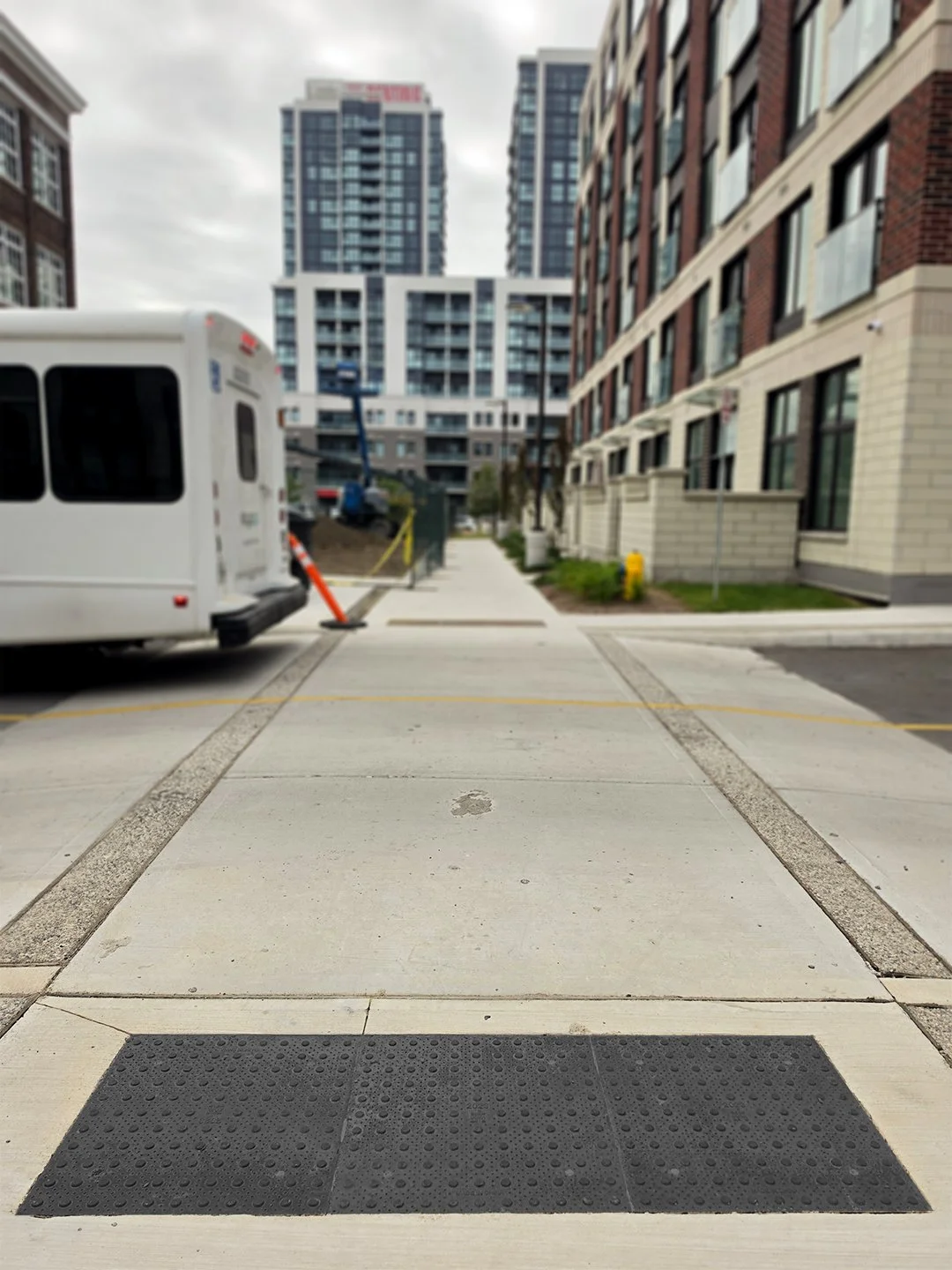

Pedestrian crosswalk in an apartment complex with GORA 24x24" onyx black steel tactile plates just before the intersection, there is construction in the background surrounded by mid-rise and high-rise buildings.

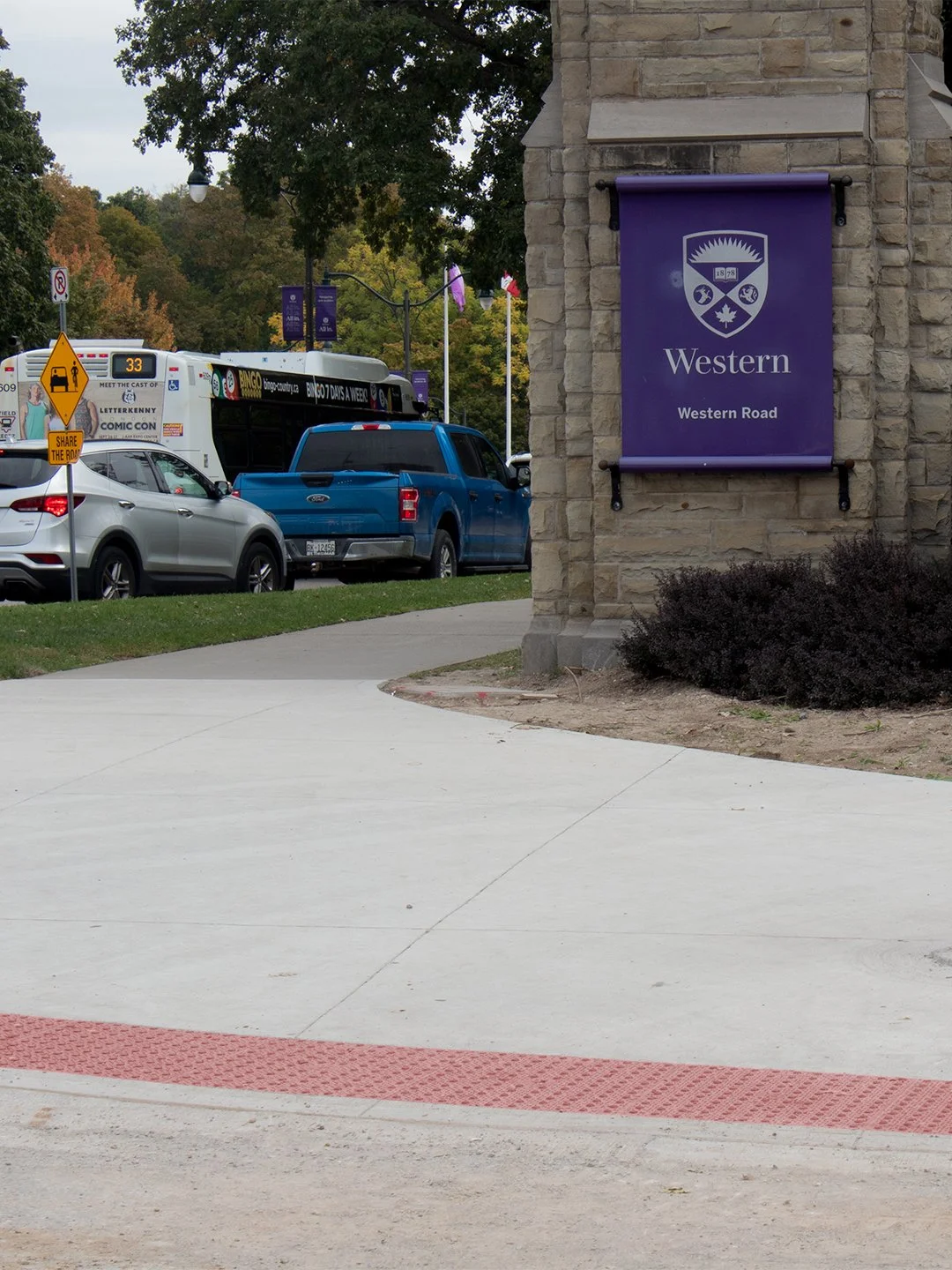

Pedestrian crosswalk leading up to Western University in London Ontario. The sidewalk has GORA brick red steel tactile and radial plates embedded down just before the intersection.

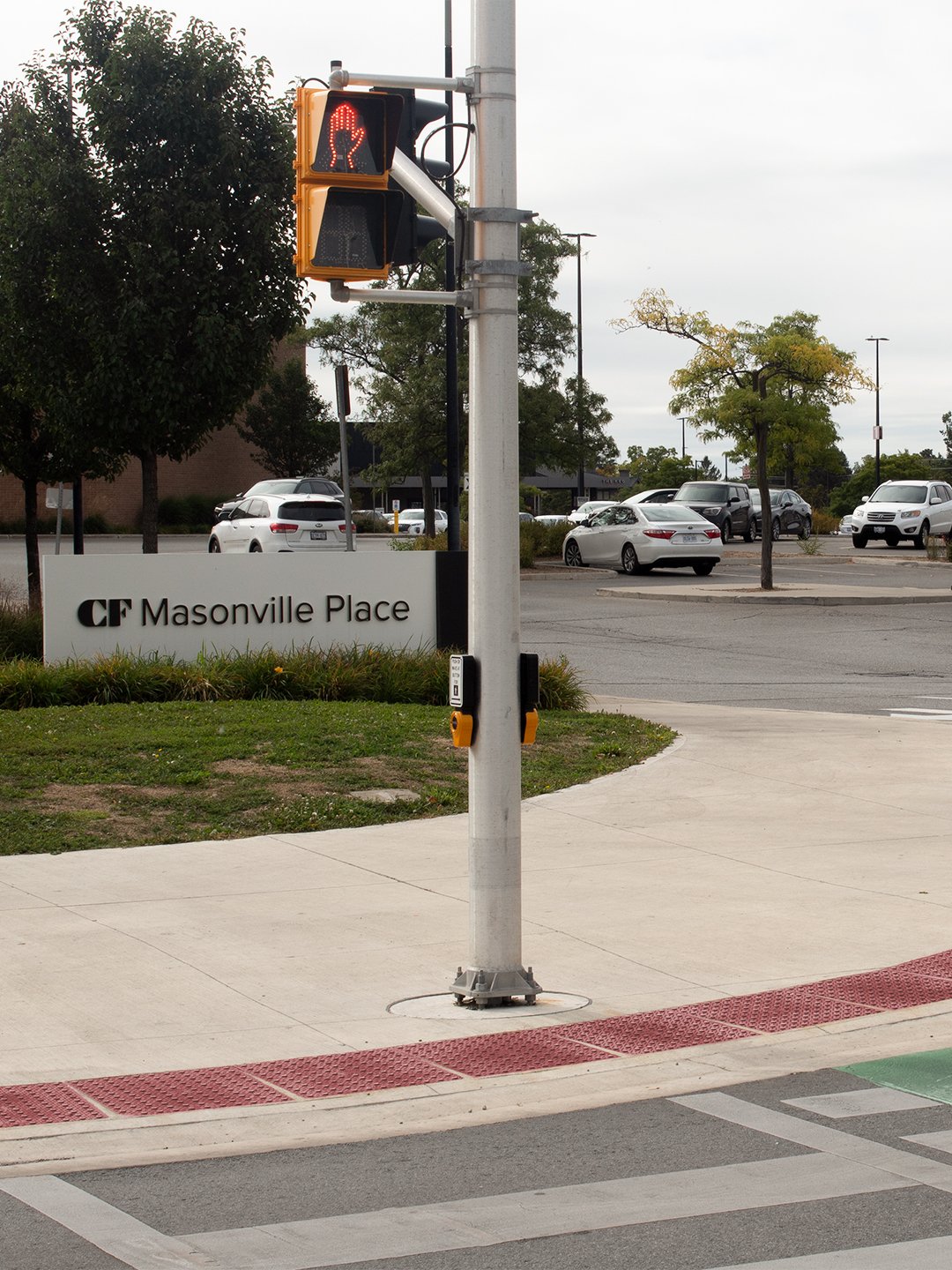

Pedestrian crosswalk leading up to Masonville Place Shopping Mall, the sidewalk has GORA brick red steel tactile and radial plates embedded into the concrete just before the intersection.

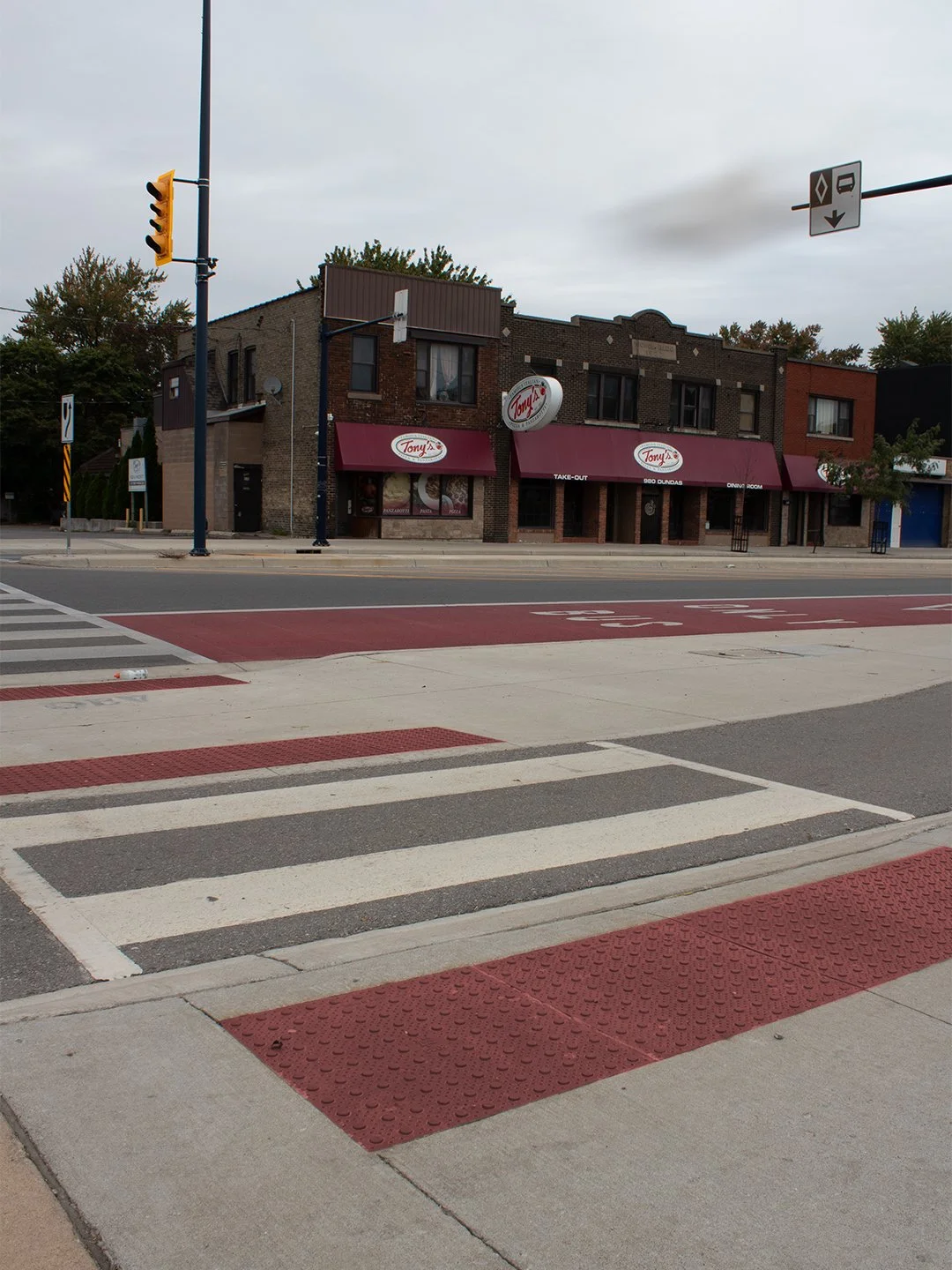

Multi-lane crosswalk with GORA 24x24" brick red steel tactile plates embedded into the concrete just before the intersection that leads up to Tony's in London Ontario.

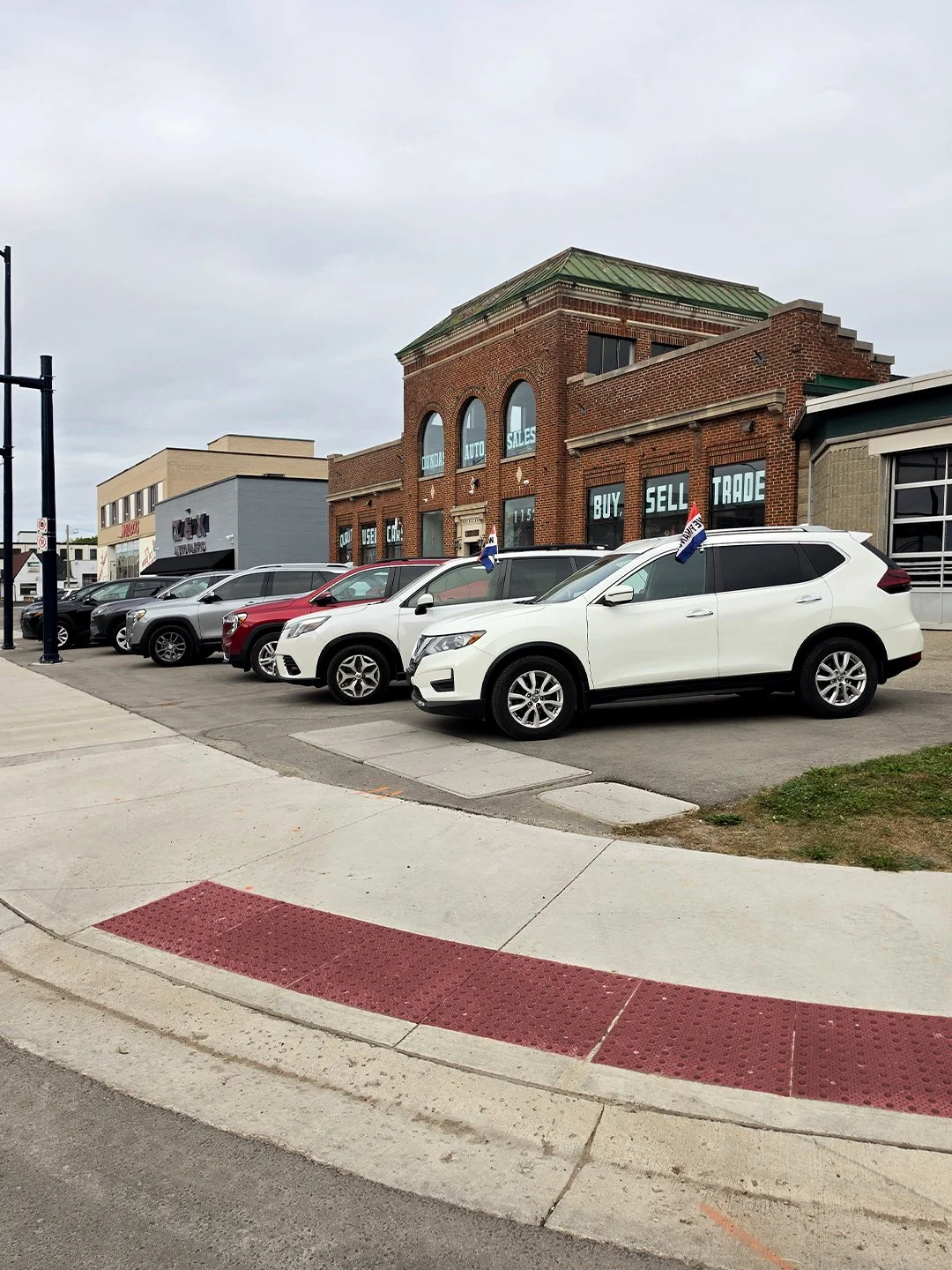

A car dealership on Dundas and Burbrook with GORA brick red steel tactile and radial plates in front of the building's public pedestrian sidewalk crossing.

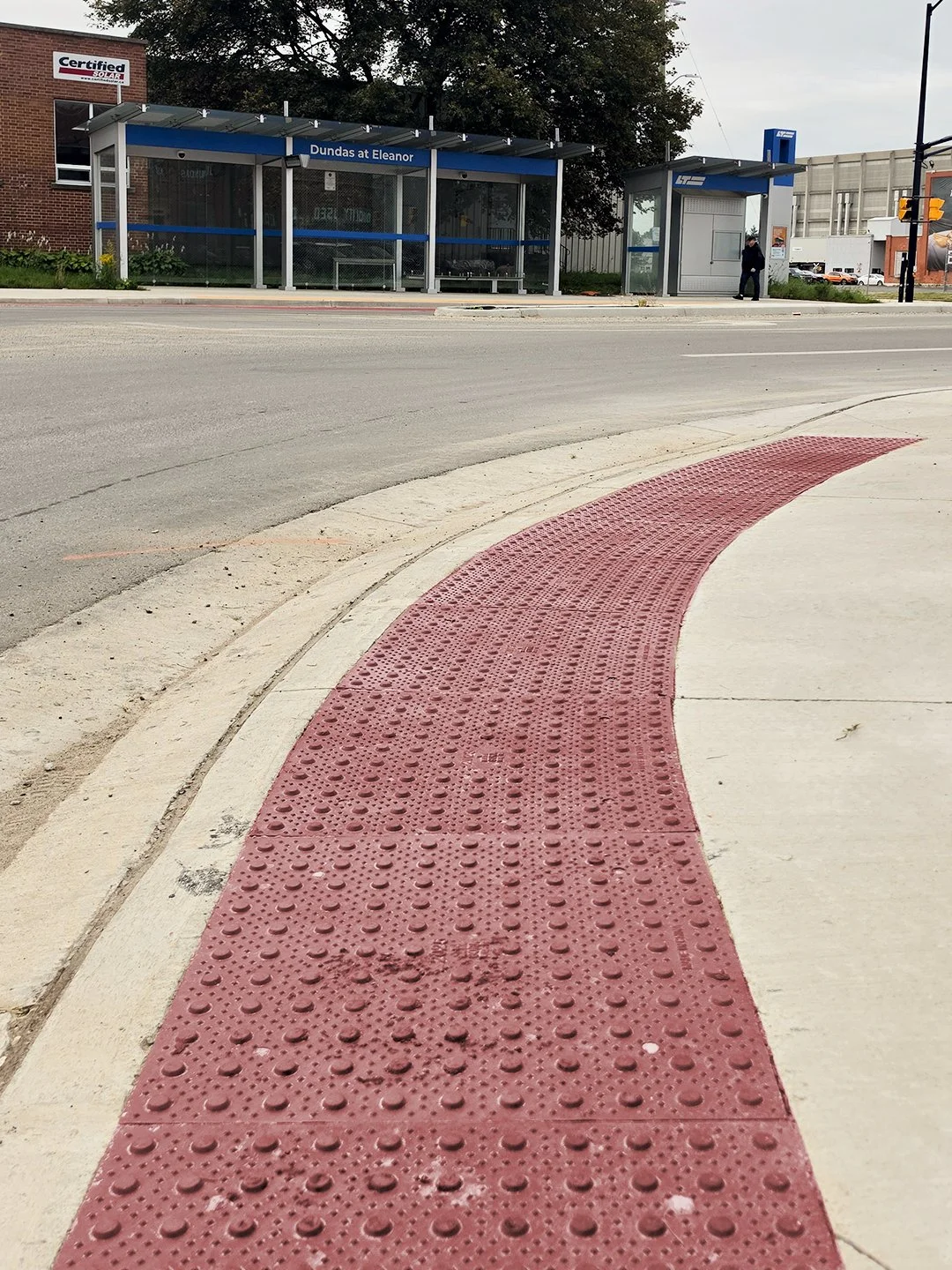

A pedestrian crosswalk at Dundas and Burbrook in London Ontario, with GORA brick red steel tactile and radial plates on the sidewalk just before the intersection begins.

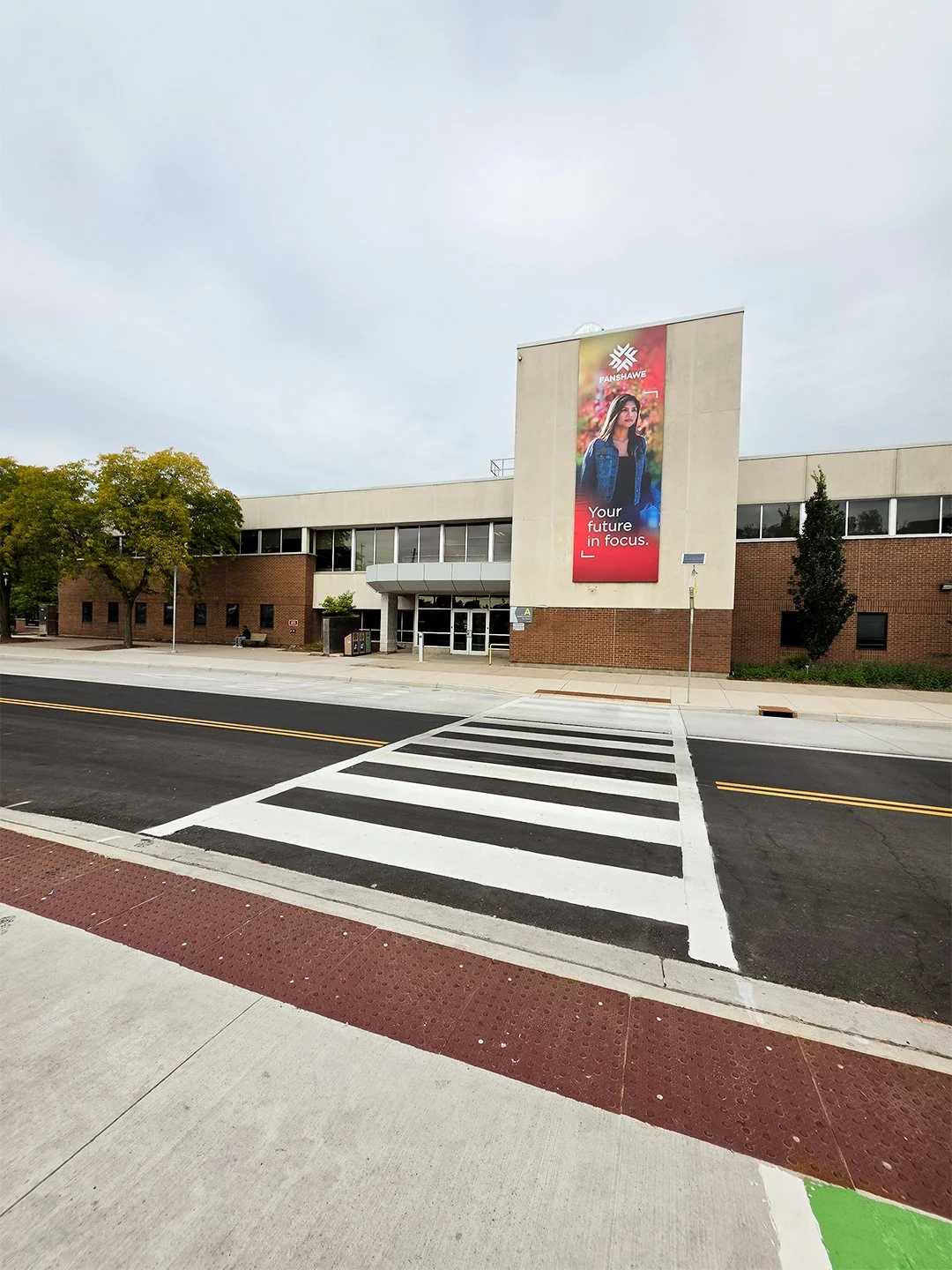

A pedestrian crossing at Fanshawe College London Ontario Main Campus with GORA 24x24" brick red steel tactile plates just before the intersection.

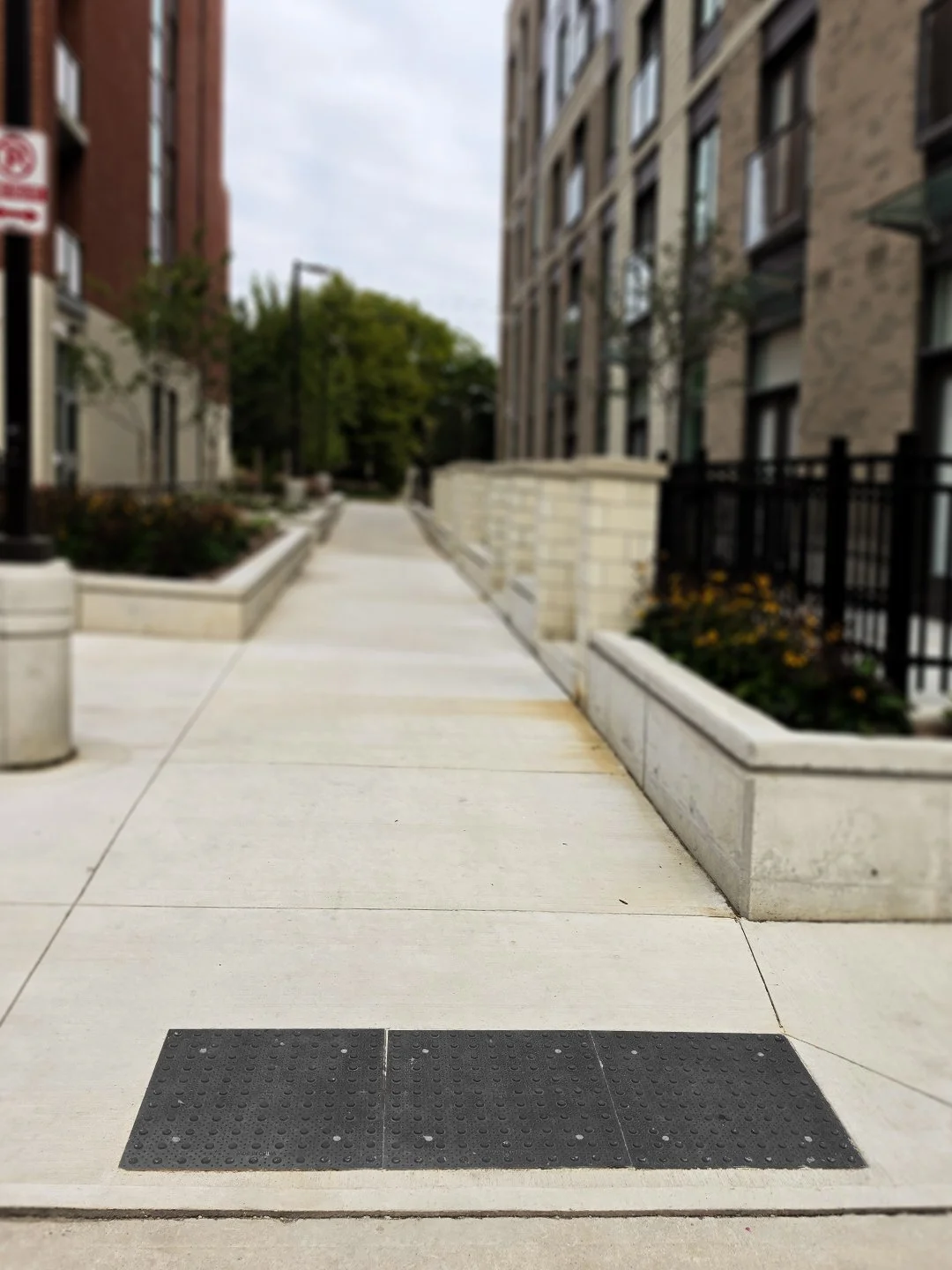

The end of a pedestrian crosswalk with GORA 24x24" onyx black steel tactile plates leading up to some apartments in London Ontario.

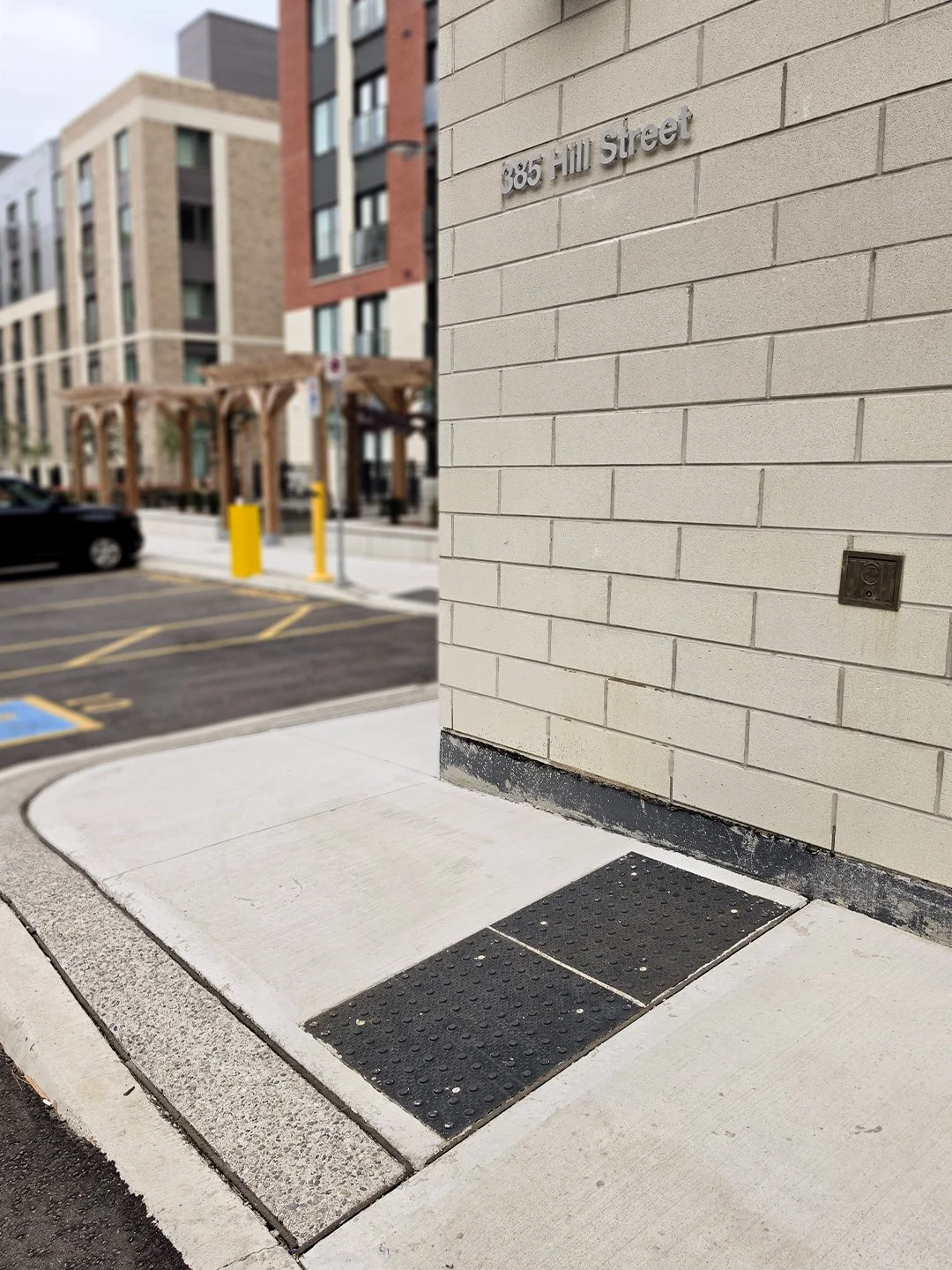

Sidewalk at 385 Hill Street Apartment complexes in London Ontario, GORA 24x24" onyx black steel tactile plates indicate a pedestrian crossing.
